SPECIFICATIONS

Application: Desktop

CPU: Intel 1200

Color: Black

Expansion Slots: Intel1200 for 10th Gen Pentium Gold and Celeron Pr

Memory: DDR4

Package: Paper Carton

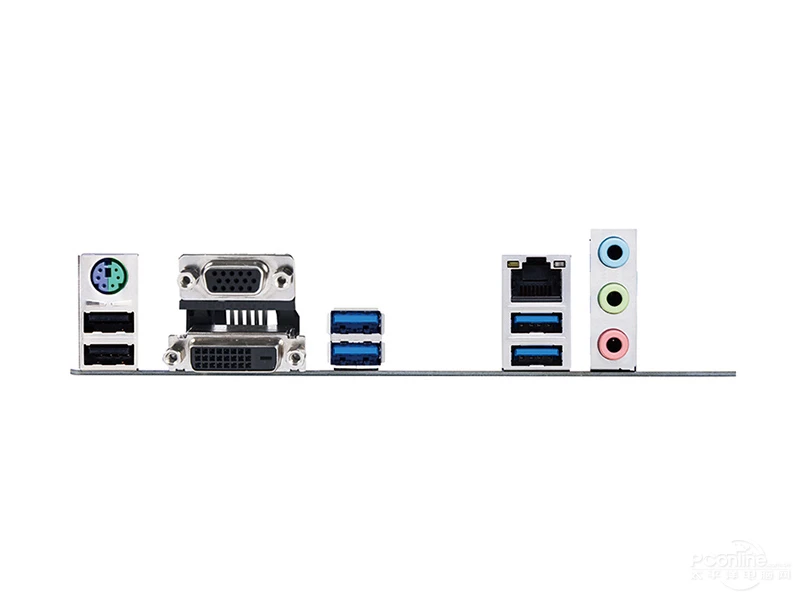

Ports: SATA, VGA,DVI, USB 2.0 USB 3.2, M.2, PCI-E 4.0,1 X PS/2, 1 X COM

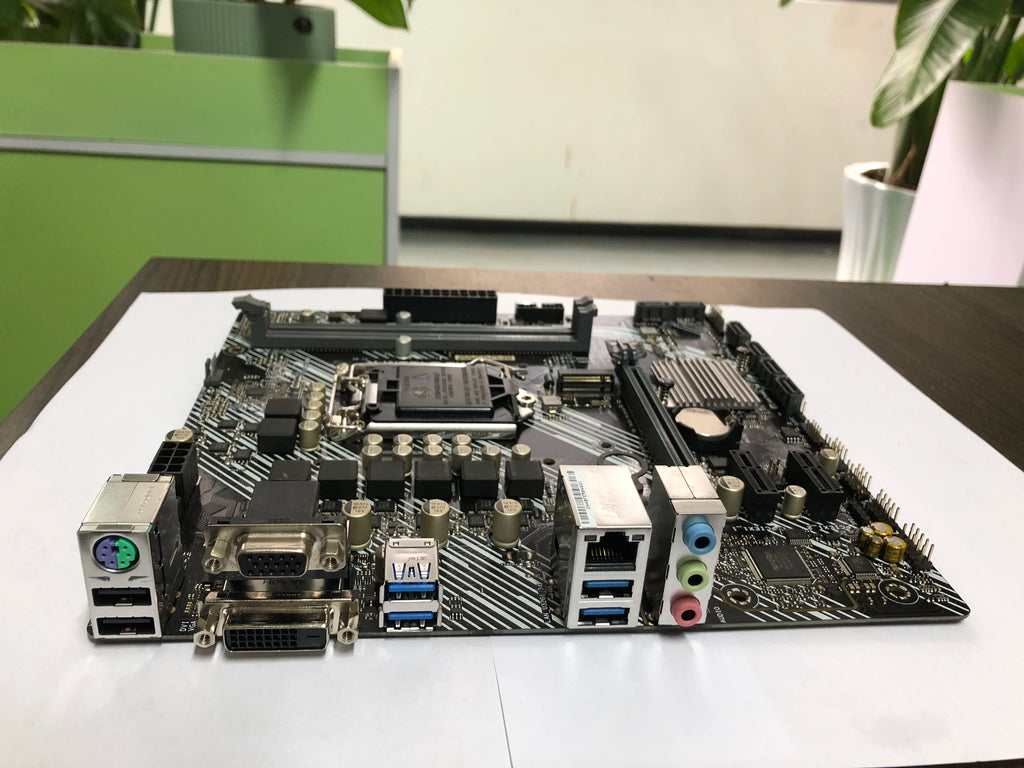

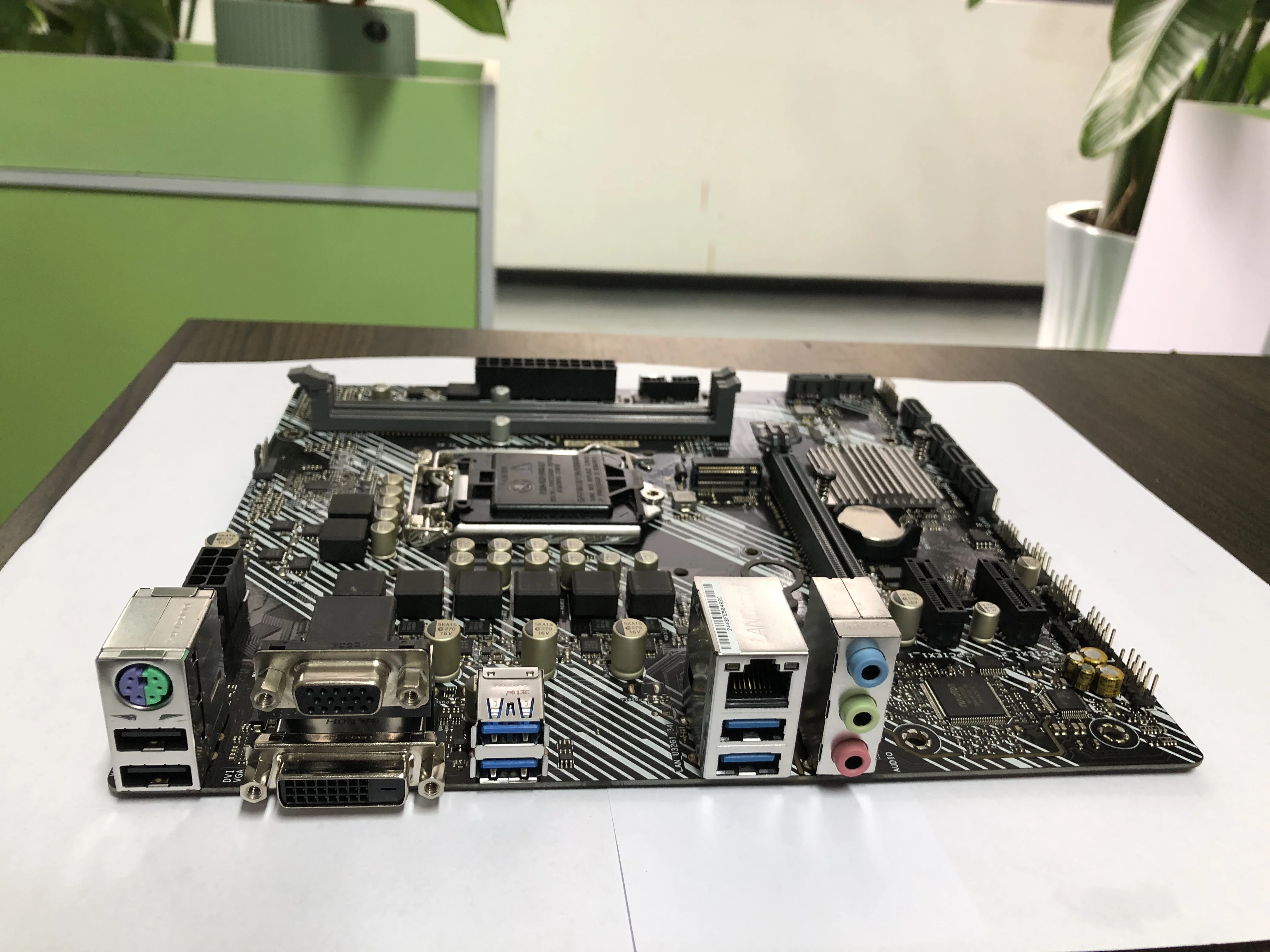

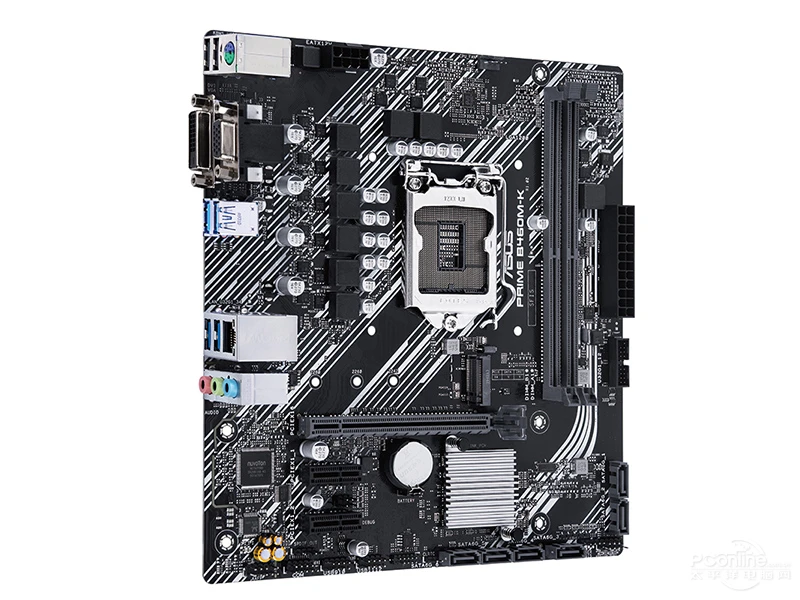

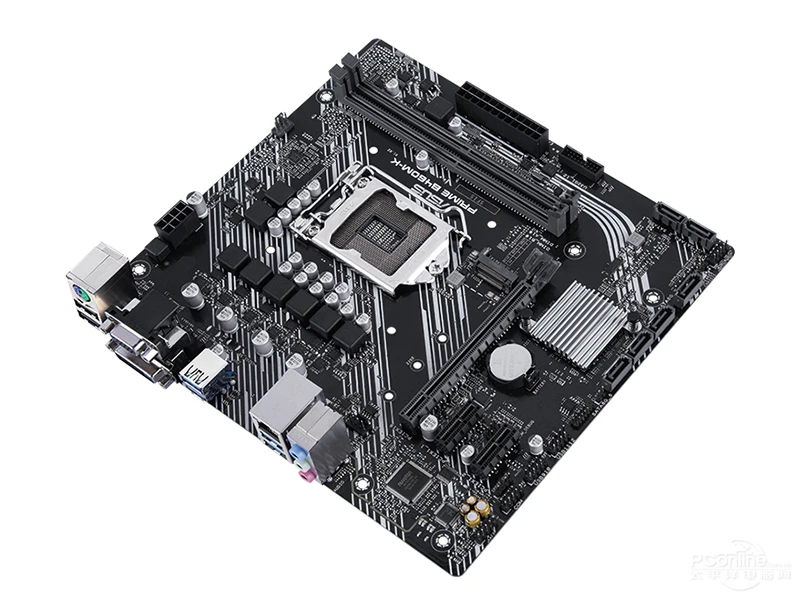

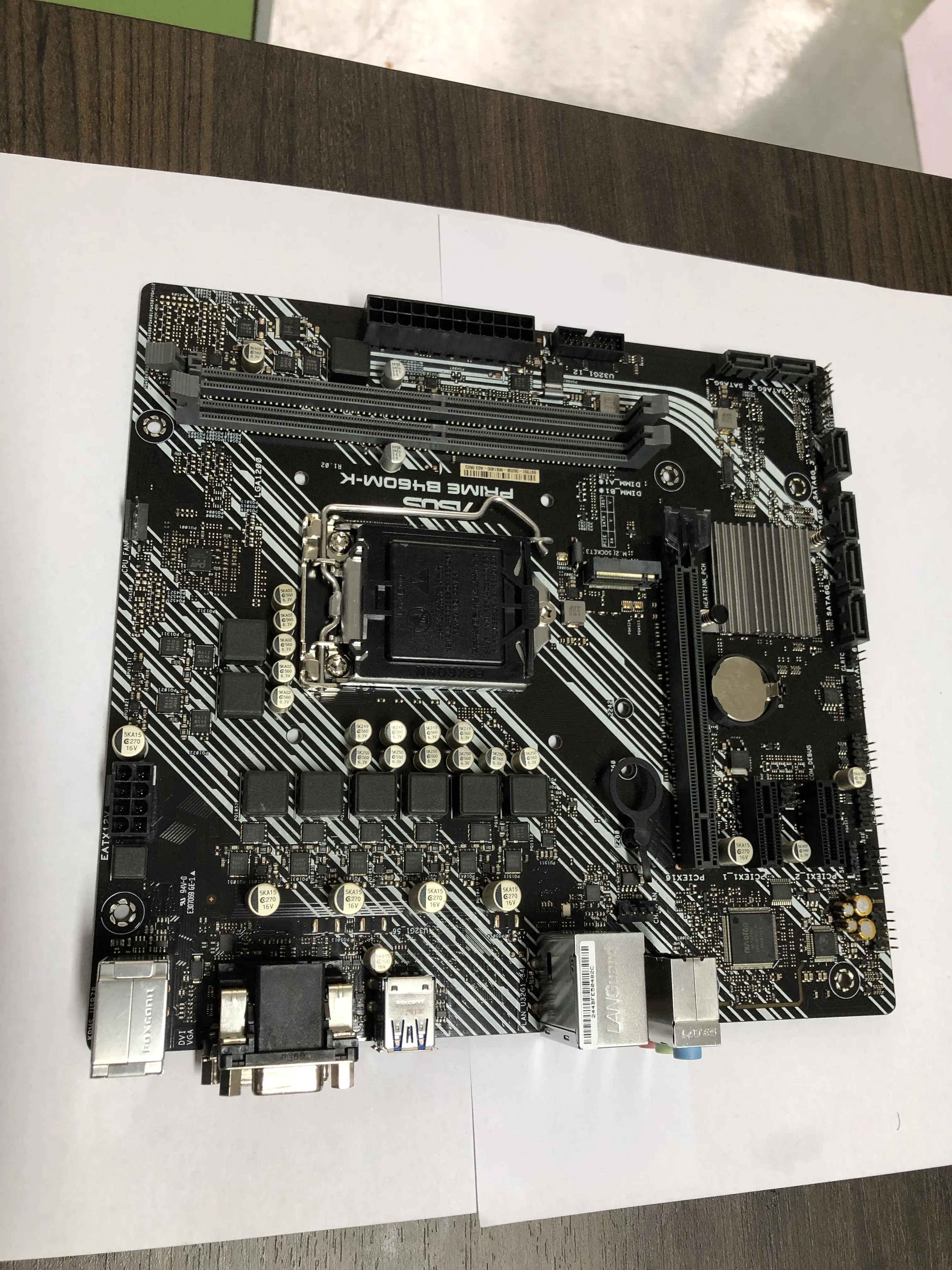

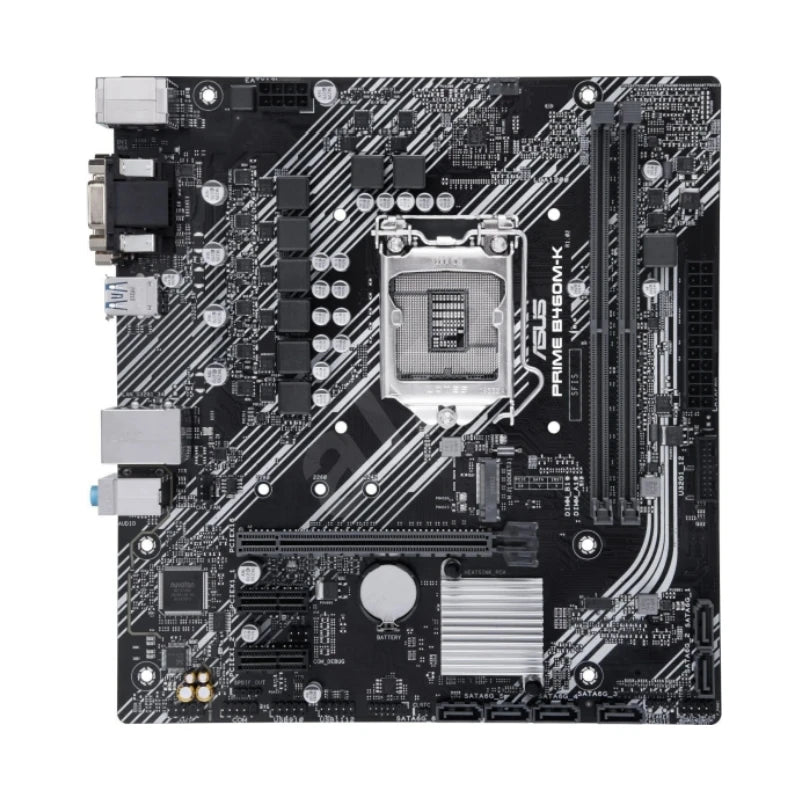

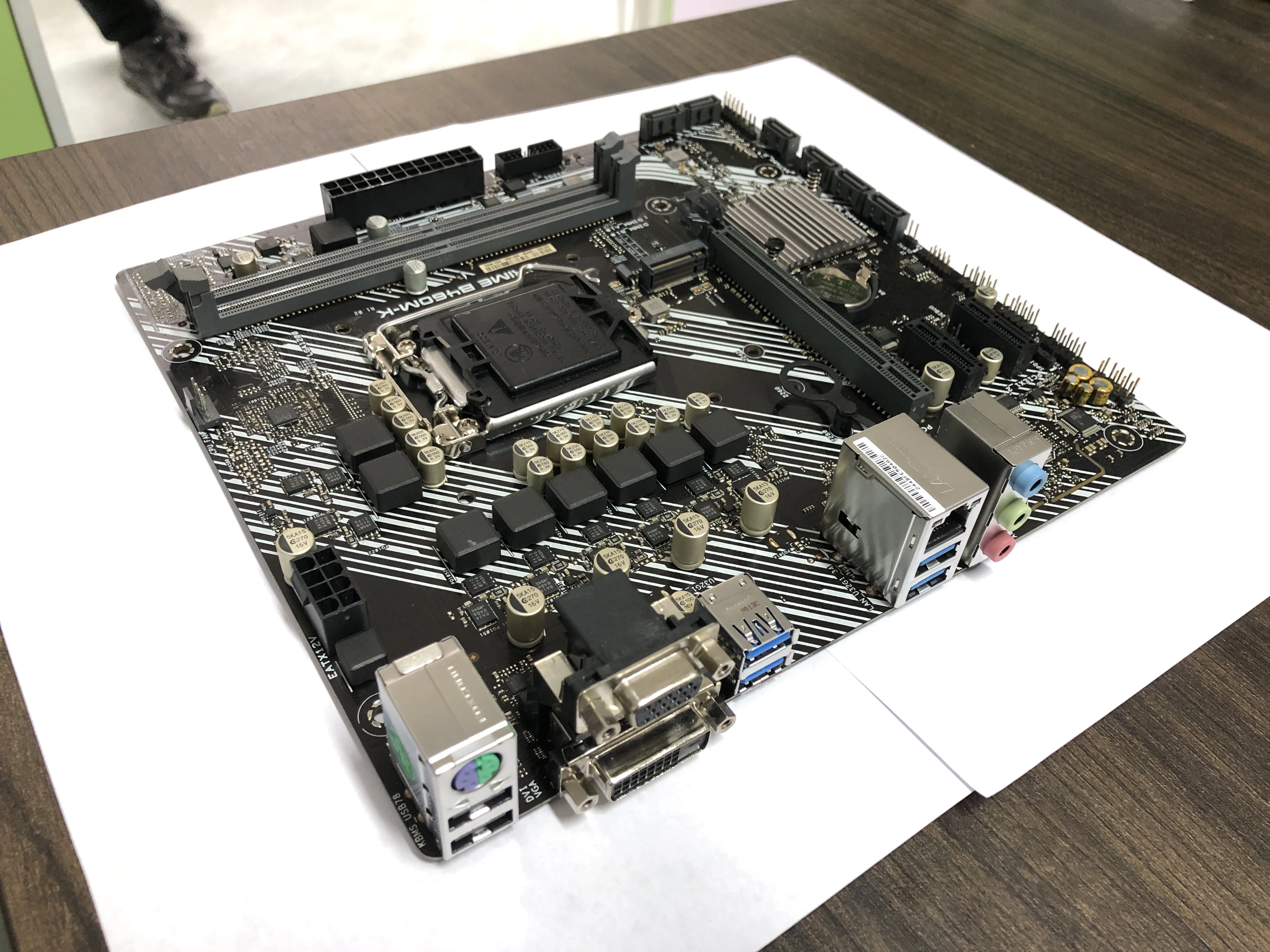

Product Name: ASUS PRIME B460M-K Motherboard

Shape: Square

Size: 22.6 X 21.1cm

application: Desktop

brand name: ASUS

chipset: Intel B460

chipset manufacturer: Intel

cpu type: Intel

form factor: Micro-ATX

fsb / ht: 2933/2800/2666/2400/2133MHz

graphics card type: Integrated-need CPU support

hard drive interface: SATA

item condition: New

maximum ram capacity: 64 GB

memory bank: 2 DDR4 DIMM

memory channel: Double

memory type: DDR4

package: Yes

place of origin: Guangdong, China

ports: SATA,DVI,VGA ,PCI-Express X16,USB 2.0,PS2,Ethernet,M.2,USB 3.0,PCI-E 3.0,PCI-Express X1

private mold: No

products status: Refurbished,Used

socket type: LGA1200

with cpu: No

Products Description

Model	ASUS PRIME B460M-K
BColor	Black
Shape	Square
Size	22.6×21.1cm
Package	Paper box

Model PRIME B460M-K

CPU Intel® Socket 1200 - Supports 10th Generation Intel® Core™, Pentium® Gold, and Celeron® processors*, supporting Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**. *Please visit w3.asus.com for a list of supported processors. **Intel® Turbo Boost Max Technology 3.0 support varies by CPU type. Supports Intel® 14nm processors Chipset: Intel® B460 Memory: 2 x DIMMs, supporting up to 64GB of DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*, OptiMem.* 10th Generation Intel® Core™ i9/i7 processors natively support 2933/2800/2666/2400/2133. Please refer to the memory QVL (Qualified Vendor List) at w3.asus.com.cn. Supports Intel® Extreme Memory Profile (XMP) technology and dual-channel memory architecture. Graphics: 1 x D-Sub. *Graphics specifications may vary depending on CPU type. Expansion Slots Intel® B460 chipset, 10th Generation Intel® processor, 1 x PCIe 3.0/2.0 x16 expansion card slot (x16 mode), 2 x PCIe 3.0/2.0 x1 expansion card slots Storage Capabilities (Subject to Shipment) Intel® B460 chipset: 1 x M.2 slot and 6 x SATA 6Gb/s interfaces, 1 x M.2_1 socket 3, supports M key, 2242/2260/2280 storage devices (SATA & PCIE modes), 6 x SATA 6Gb/s interfaces, supports RAID 0, 1, 5, 10, Intel® Rapid Storage Technology, and Intel® Optane™ memory technology Networking Realtek® RTL8111H, 1 x Gigabit Ethernet, supports LANGuard network security Audio Realtek ALC887/8977.1-channel high-definition audio codec*, supports: audio jack detection, front panel audio jack swapping, multi-streaming, 24-bit/192kHz playback, LED audio divider, audio divider design, separate left and right audio channels, high-quality Japanese audio capacitors. Audio features: USB Ports 4 x USB 3.2 Gen 1 (up to 5Gbps) ports (4 x Type-A), 2 x USB 3.2 Gen 1 (up to 5Gbps) ports, 6 front USB ports, 6 rear USB ports, 2 x USB 2.0 ports (2 x Type-A) Software Features ASUS Exclusive Software Armory Crate AURA SYNC AI Suite 3 Intelligent Management Suite 3 - Performance and Power Applications EPU Intelligent Energy Processing Digi+ Power Design Fan Xpert 4 - EZ Update AI Charger WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Exclusive Features ASUS 5X Protection III - ASUS DIGI+ Power Design - ASUS LANGuard Security - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless Steel Moisture-Resistant I/O Connectors ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot Rear I/O 4 x USB 3.2 Gen 1 Type-A Ports, 1 x D-Sub Port, 1 x DVI-D Port, 1 x LAN (RJ45) Port, 2 x USB 2.0 Interfaces, 3 audio jacks, 1 PS/2 keyboard and mouse port Internal I/O Interfaces 1 x AAFP front audio header, 6 x SATA 6Gb/s device connectors, 1 x 24-pin EATX motherboard power connector, 1 x Clear CMOS jumper, 1 x COM port header, 1 x CPU fan header (1 x 4-pin), 1 x USB 3.2 Gen 1 (up to 5Gbps) port with support for 2 additional USB 3.2 Gen 1 ports, 1 x system panel header (built-in chassis intrusion header), 1 x S/PDIF_Out header, 1 x chassis fan connector (1 x 4-pin), 2 x USB 2.0 ports with 4 external USB 2.0 ports, 1 x M.2 Socket 3 slot supporting M key, 2242/2260/2280 storage devices, 1 x 8-pin ATX 12V motherboard power socket Accessories I/O shield, 2 x SATA 6.0Gb/s data cables, user manual, 1 x M.2 plastic mounting bracket BIOS 128Mb Flash ROM, UEFI AMI BIOS Management Software Write-on-Launch (WOL) by PME, PXE Operating System Windows® 10 64-bit Dimensions mATX form factor, 8.9" x 8.3" (22.6 cm x 21.1 cm)
