SPECIFICATIONS

Audio: Realtek ALC887 codec

BIOS: 1 x 256 Mbit flash

CHIPSET: Intel B460 Express Chipset

CPU (MAX SUPPORT): 10th I9 I7 I5 I3

FORM FACTOR: Micro ATX, 22.6cm x 18.5cm

I/O Controller: iTE I/O Controller Chip

LAN: Realtek GbE LAN chip (1000 Mbit/100 Mbit)

MEMORY CHANNEL: Dual

Memory: 2 x DDR4 DIMM sockets

Operating System: Windows 10 64-bit

application: Desktop

brand name: GIGABYTE

chipset: Intel B460

chipset manufacturer: Intel

cpu type: Intel

form factor: Micro-ATX

graphics card type: Integrated-need CPU support

hard drive interface: SATA,1 x M.2 ports (Key M)

item condition: Used

maximum ram capacity: 128 GB

memory bank: 4 DDR4

memory channel: Double

memory type: DDR4

package: No

place of origin: Guangdong, China

ports: SATA,DVI,VGA ,AGP PRO,PCI-Express X16,PCI-Express X8,PCI-Express X4,AGP 2X,USB 2.0,PS2,E-sata,Ethernet,M.2,USB 3.0,Usb3.1,PCI-E 3.0,PCI-Express X1,AGP 8X,AGP 4X

products status: Used,OPEN-BOX

socket type: LGA 1151

with cpu: Yes

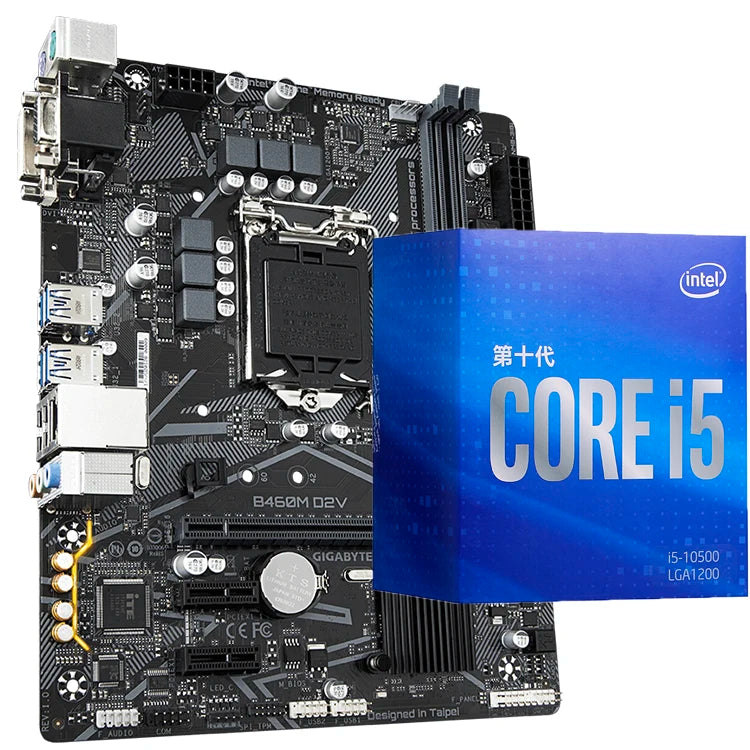

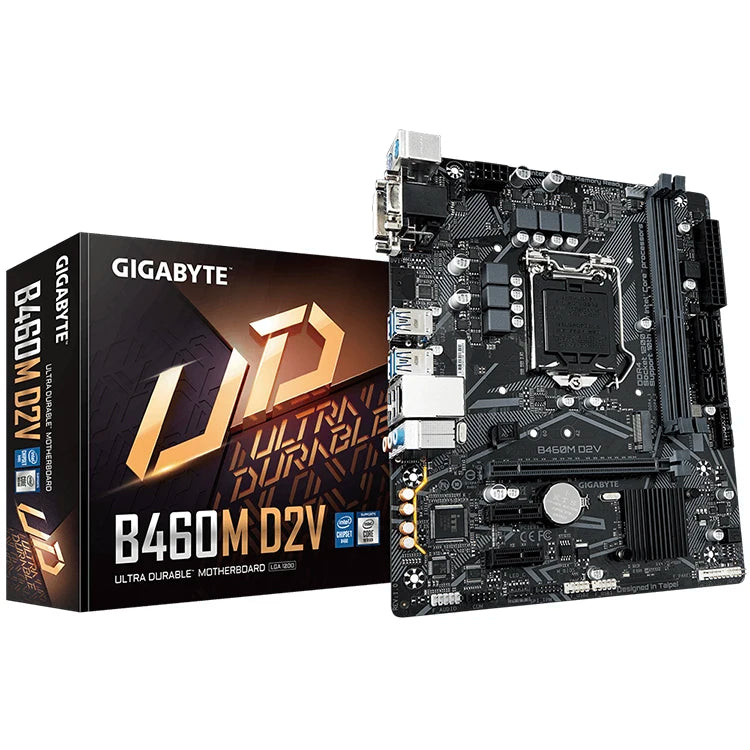

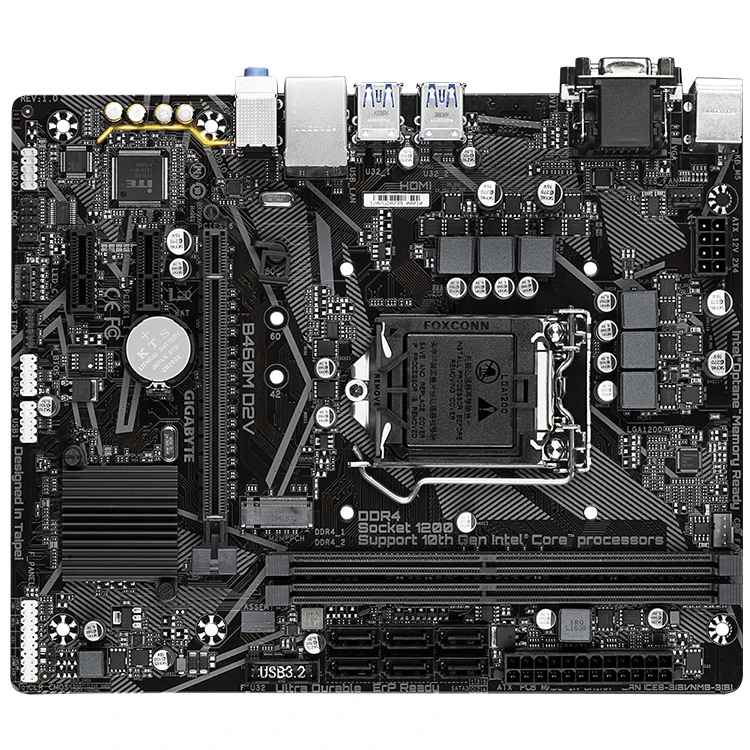

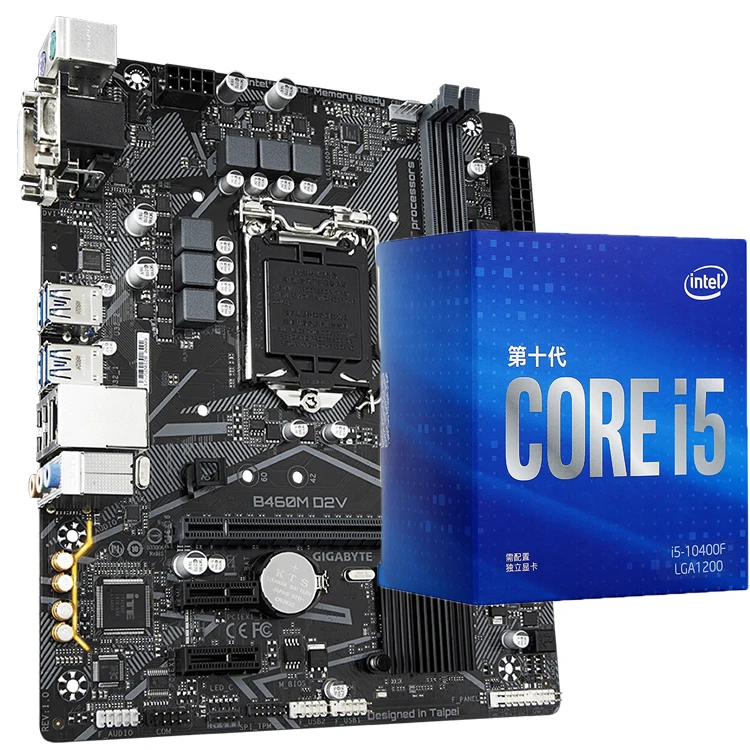

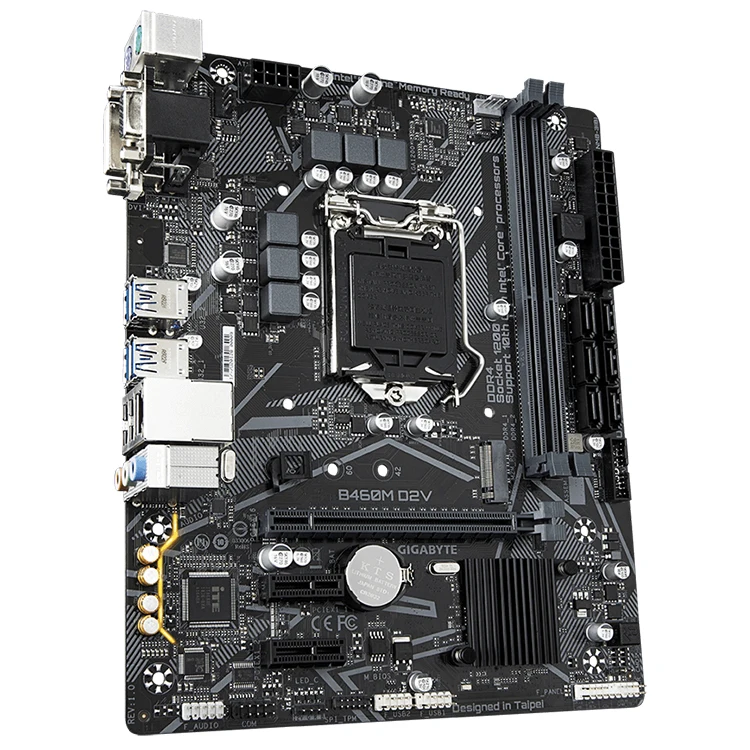

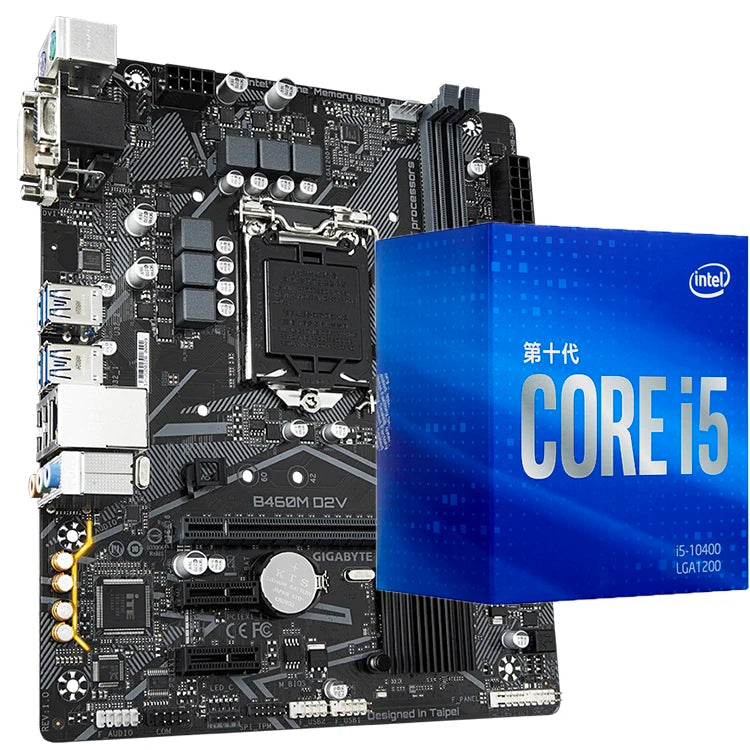

GIGABYTE B460M D2V Used Motherboard with Intel B460 Chipset 10th Core CPU I5 10400 10400F 10500 Processors

Intel^® B460 Ultra Durable Motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 5

• Supports 10th Gen Intel^® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• Hybrid Digital PWM Design
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Anti-Sulfur Resistors Design
• Ultra Durable™ 15KV Surge LAN Protection
• Intel^® Optane™ Memory Ready

• CPU
1. Support for 10th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1200 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

• Chipset
1. Intel^® B460 Express Chipset
• Memory
1. Intel^® Core™ i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 MHz
2. Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
   Support for DDR4 2666/2400/2133 MHz
3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

• Onboard Graphics

Integrated Graphics Processor-Intel^® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
   * The DVI-D port does not support D-Sub connection by adapter.

Maximum shared memory of 512 MB

• Audio
1. Realtek^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
• LAN
1. Realtek^® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots
1. 1 x PCI Express x16 slot, running at x16
2. 2 x PCI Express x1 slots
   (The PCI Express slots conform to PCI Express 3.0 standard.)
• Storage Interface
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
2. 6 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel^® Optane™ Memory Ready

• USB

Chipset:

1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x RGB LED strip header
6. 6 x SATA 6Gb/s connectors
7. 1 x M.2 Socket 3 connector
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 2 x USB 2.0/1.1 headers
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
13. 1 x serial port header
14. 1 x Clear CMOS jumper

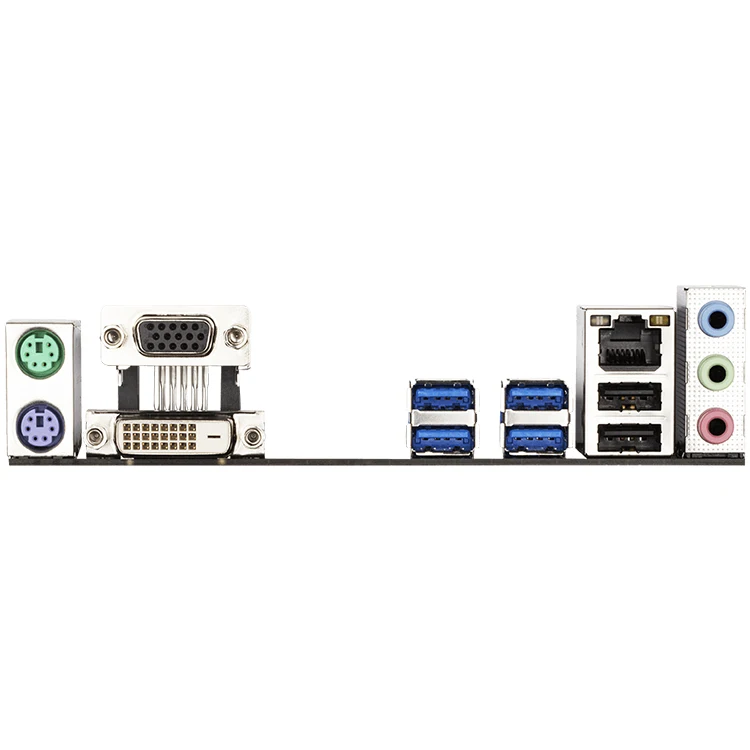

• Back Panel Connectors
1. 1 x PS/2 mouse port
2. 1 x PS/2 keyboard port
3. 1 x D-Sub port
4. 1 x DVI-D port
5. 4 x USB 3.2 Gen 1 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks
• I/O Controller
1. iTE^® I/O Controller Chip
• H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
1. Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   Ambient LED
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   Smart Backup
   System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install
• Bundled Software
1. Norton^® Internet Security (OEM version)
2. Realtek^® 8118 Gaming LAN bandwidth Control Utility
• Operating System
1. Support for Windows 10 64-bit
• Form Factor
1. Micro ATX Form Factor; 22.6cm x 18.5cm
• Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
