UNI-T UT133A UT133B Digital Multimeter 6000 Counts Multimetro Test AC/DC Voltage Tester Frequency Capacitance Meter Current Tool
UNI-T UT133A UT133B Digital Multimeter 6000 Counts Multimetro Test AC/DC Voltage Tester Frequency Capacitance Meter Current Tool
SPECIFICATIONS
AC Current: 10A
AC Voltage: 600V
Battery Included: no
Battery test: UT133B have
Brand Name: UNI-T
Certification: CE
Continuity buzzer: Yes
DC Current: 600uA/60mA/600mA/10A
DC Voltage: 600mV/6000mV/60V/600V
DIY Supplies: Electrical
Digital capacimeter: Frequency meter
Dimensions: 155mm x 76.5mm x 49mm
Display Type: Digital Display
Display count: 6000
High-concerned chemical: None
Measuring Capacitance Range: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF
Measuring Resistance Range: 600Ω/6000Ω/60kΩ/600kΩ/60MΩ
Model Number: UT133A UT133B
Operating Mode: Auto Range
Origin: Mainland China
Overload indication: Yes
Temperature: -40-1000 Celsius

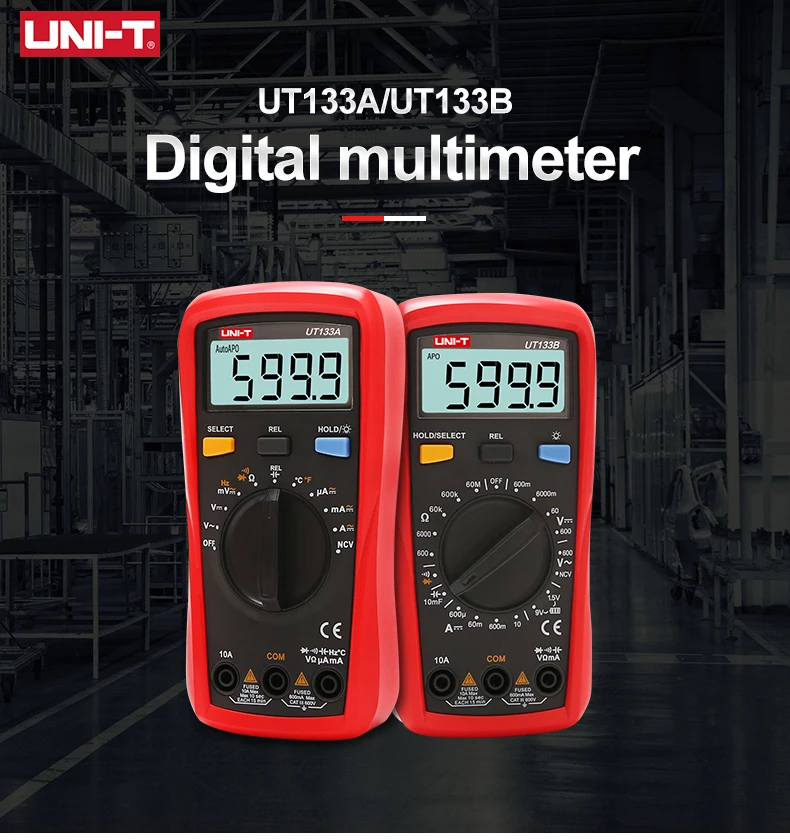

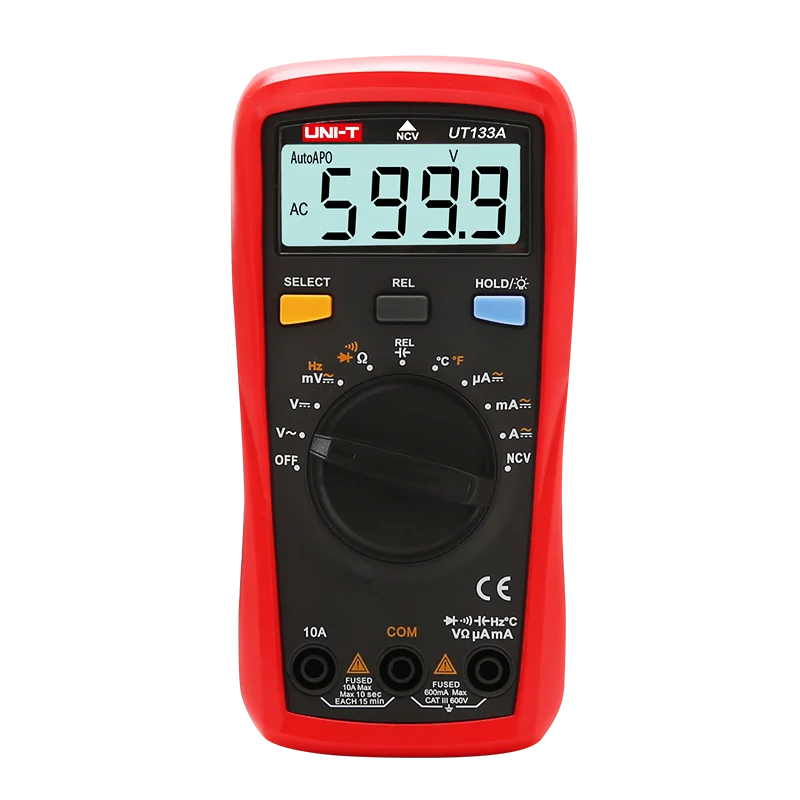

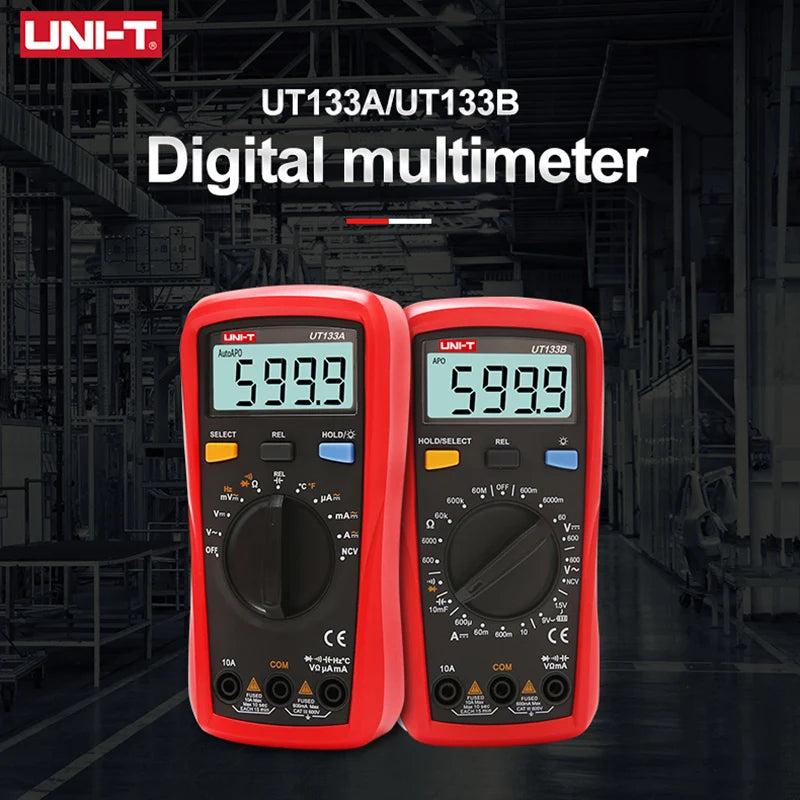

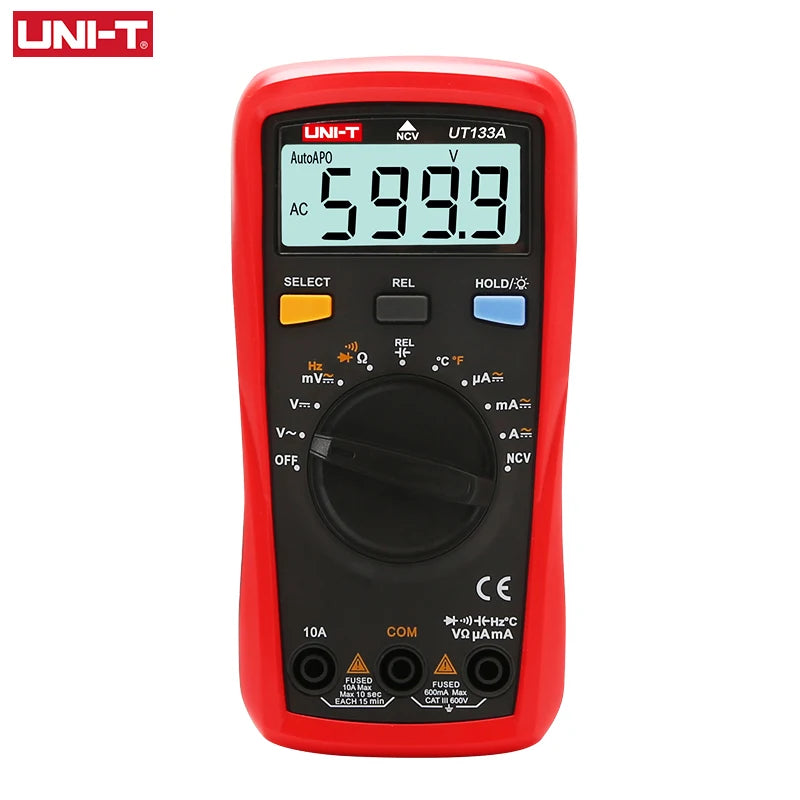

UT133A UT133B Digital Multimeter

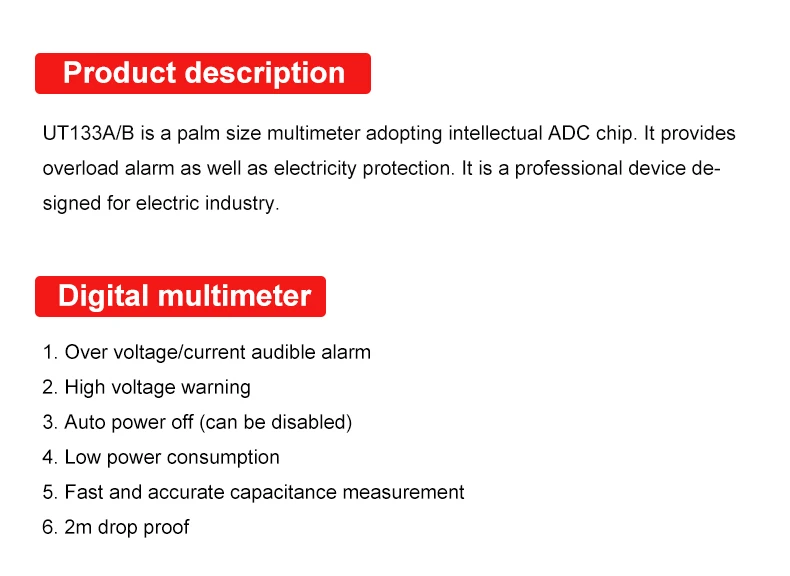

UT133A/B is a palm size multimeter adopting intellectual ADC chip. It provides overload alarm as well as electricity protection. It is a professional device designed for electric industry.

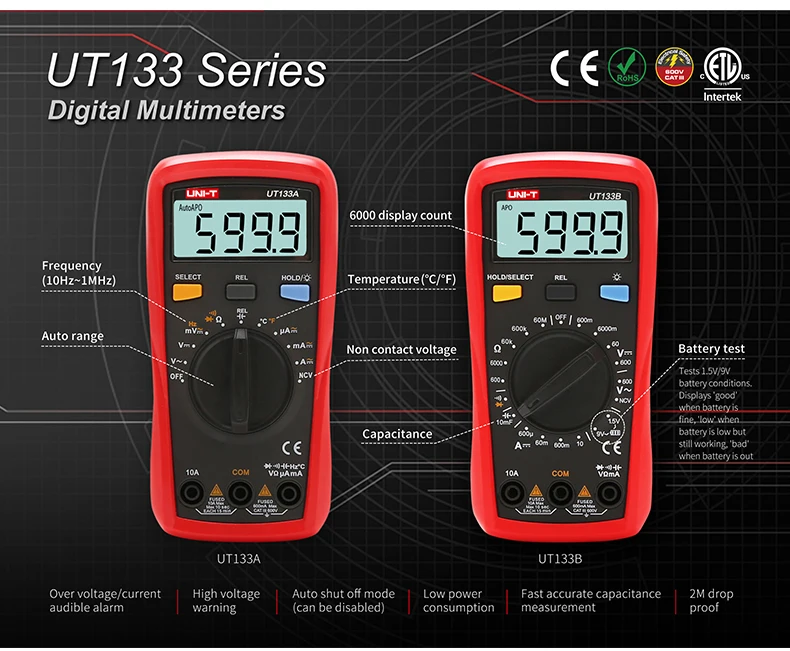

Features
1.600V DC AC voltage measurement
2. Overvoltage/overcurrent audible alarm
3. High pressure warning
4. Continuous buzzer
5. Automatic shutdown (can be disabled)
6. Low power consumption

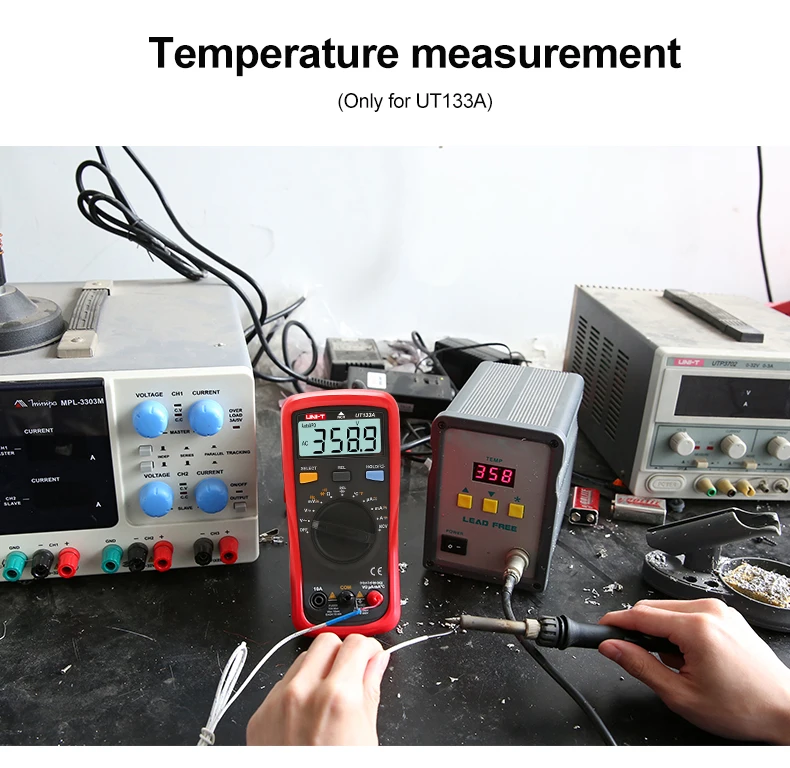

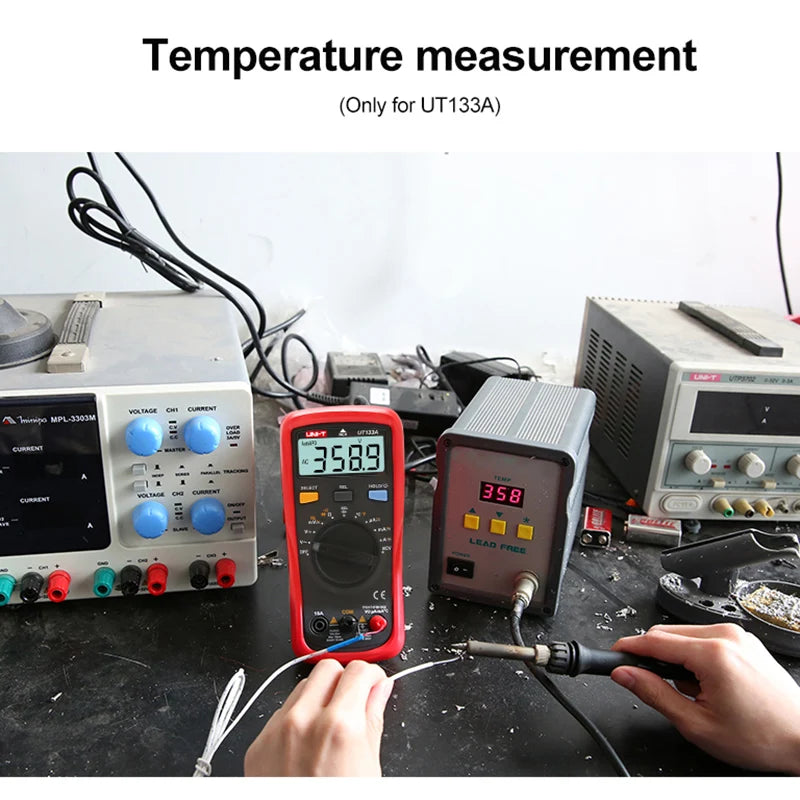

7. Frequency and temperature measurement function (only UT133A)

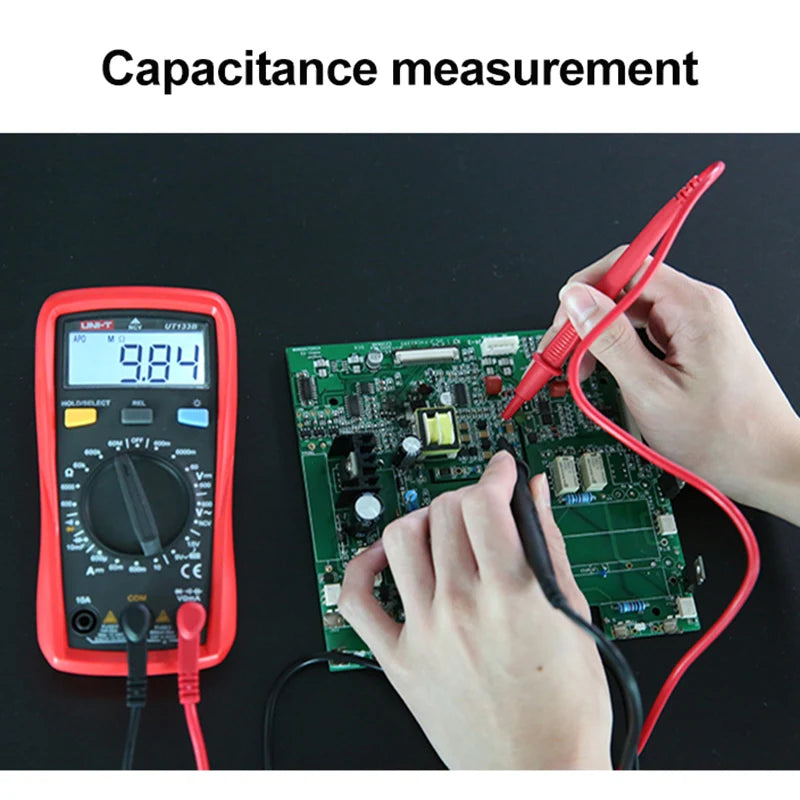

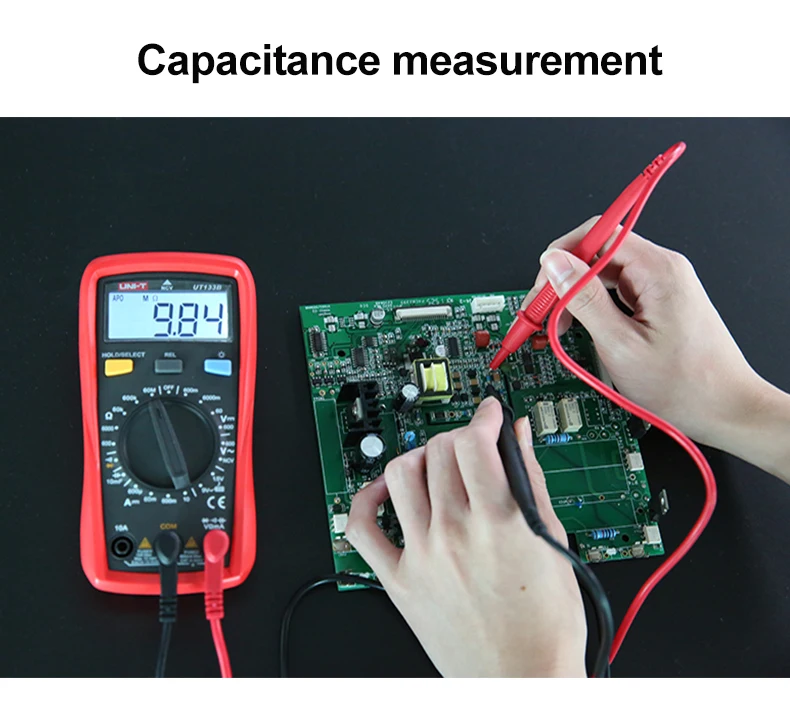

8. Fast and accurate capacitance and resistance measurement
9. There is a test probe holder
10. 2m drop resistance
Notice please: battery no include!

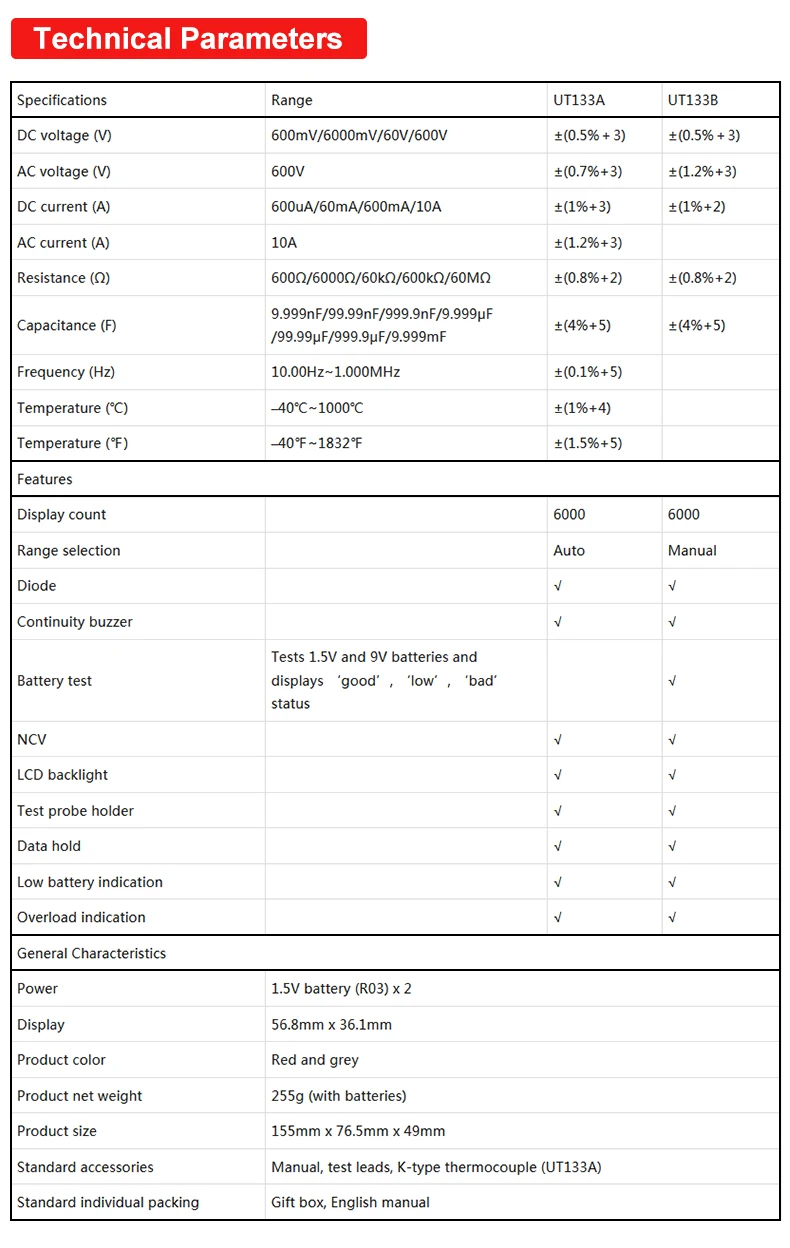

Parameter
Specifications |
Range |
UT133A |
UT133B |
DC voltage (V) |
600mV/6000mV/60V/600V |
±(0.5%＋3) |
±(0.5%＋3) |
AC voltage (V) |
600V |
±(0.7%+3) |
±(1.2%+3) |
DC current (A) |
600uA/60mA/600mA/10A |
±(1%+3) |
±(1%+2) |
AC current (A) |
10A |
±(1.2%+3) |
|
Resistance (Ω) |
600Ω/6000Ω/60kΩ/600kΩ/60MΩ |
±(0.8%+2) |
±(0.8%+2) |
Capacitance (F) |
9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF |
±(4%+5) |
±(4%+5) |
Frequency (Hz) |
10.00Hz~1.000MHz |
±(0.1%+5) |
|
Temperature (℃) |
‒40℃~1000℃ |
±(1%+4) |
|
Temperature (℉) |
‒40℉~1832℉ |
±(1.5%+5) |
|
Features | |||
Display count |
6000 |
6000 |
|
Range selection |
Auto |
Manual |
|
Diode |
√ |
√ |
|
Continuity buzzer |
√ |
√ |
|

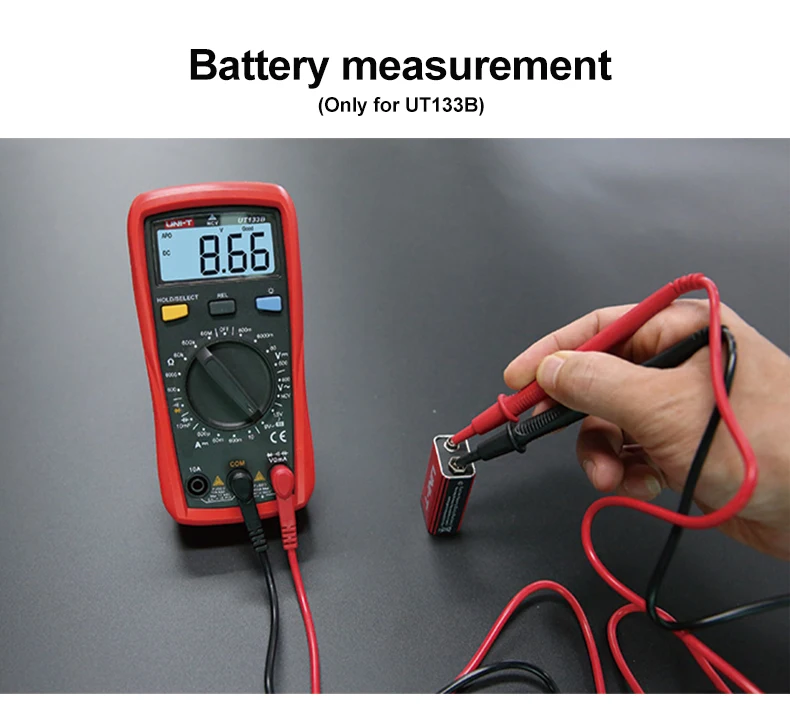

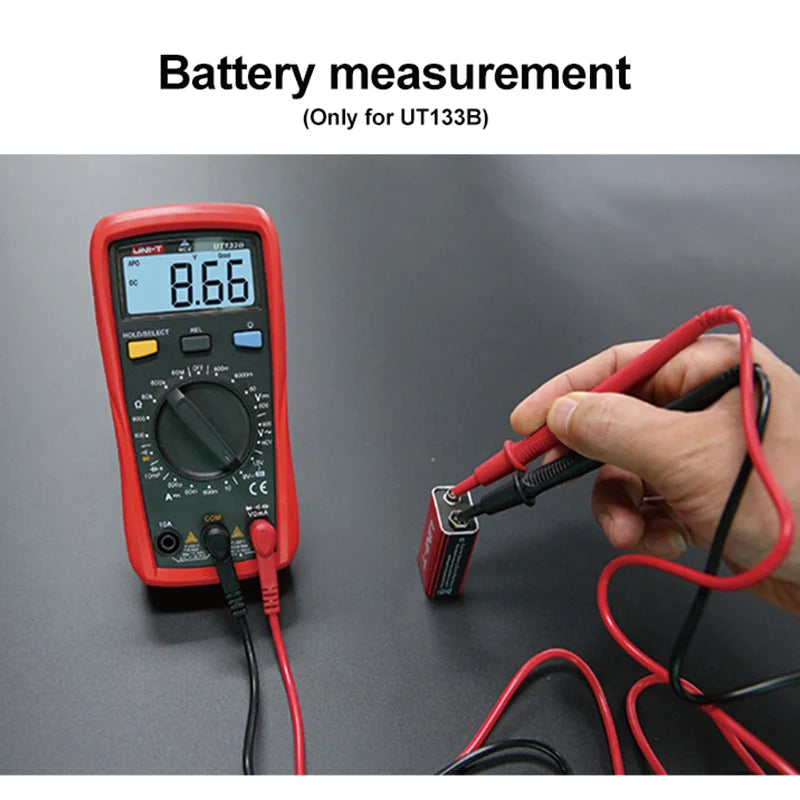

Battery test |
Tests 1.5V and 9V batteries anddisplays ‘good’, ‘low’, ‘bad’ status |
√ |
|

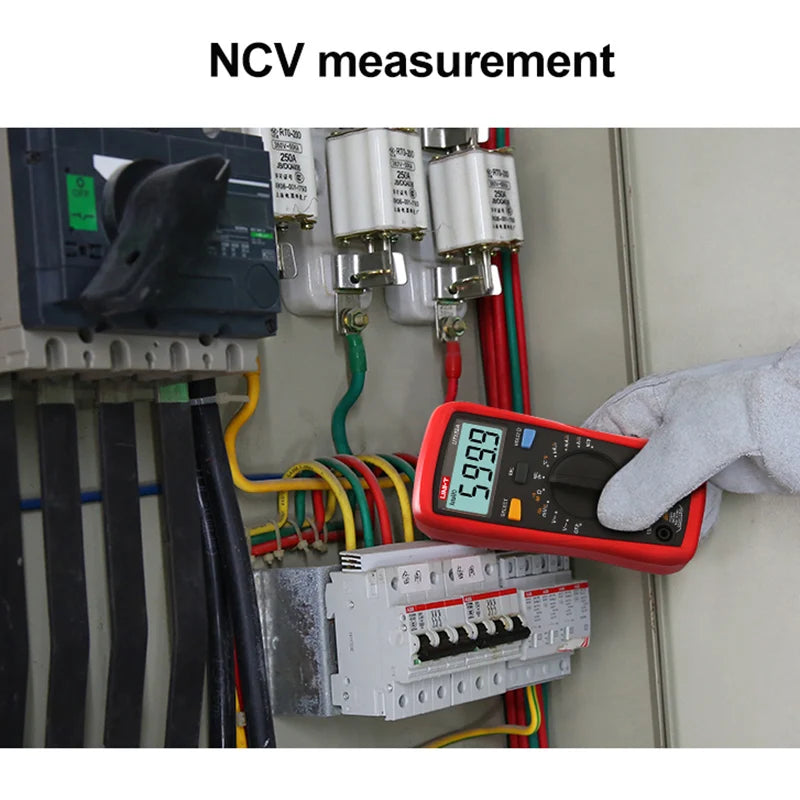

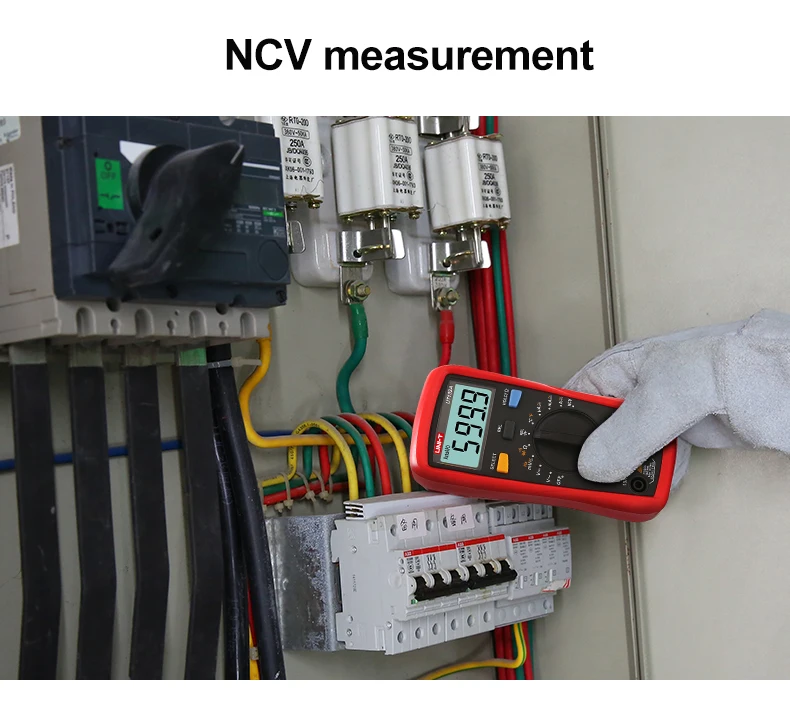

NCV |
√ |
√ |
|
LCD backlight |
√ |
√ |
|
Test probe holder |
√ |
√ |
|
Data hold |
√ |
√ |
|
Low battery indication |
√ |
√ |
|
Overload indication |
√ |
√ |
|
General Characteristics | |||
Power |
1.5V battery (R03) x 2(No include) |
||
Display |
56.8mm x 36.1mm |
||
Product color |
Red and grey |
||
Product net weight |
255g |
||
Product size |
155mm x 76.5mm x 49mm |
||
Standard accessories |
Manual, test leads, K-type thermocouple (UT133A) |
||
